Building a Magic Mirror

Windows 10 IoT Core, UWP, C#, Raspberry Pi 3

David Pine

6 minute read

Inspiration

I am certainly not the first one to create a magic mirror, and I will not be the last either. I was inspired by those who are true Innovators…some might say, “I’m standing on the shoulders of giants”. They would probably we right, and I’m okay with that. Earlier this year, I stumbled upon a tweet about someone how created a magic mirror…this is the root of my inspiration.

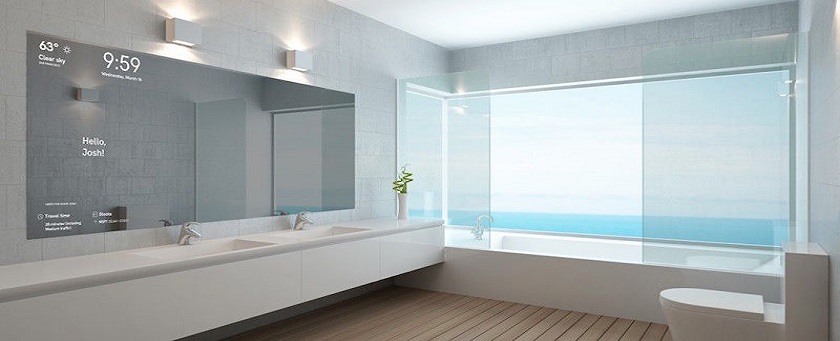

Before continuing on, allow me to explain what a magic mirror is. A magic mirror is simply a two-way mirror with a monitor positioned behind it that projects through the mirror. The monitor displays the application. The application is running on a small computer, in most cases a Raspberry Pi.

Raspberry Pi

I noticed that a lot of the magic mirror’s had greeting messages such as “you look handsome” or “good morning sexy” and other curiously intuitive sayings. I thought “wow” this really is a smart mirror, much to my surprise these were all just static messages (or only dynamic when accounting for the time of day). I was thinking to myself, “I wonder if I could improve upon this”, and that was my motivation!

Open Source

If you want to skip out from reading this post, you can checkout my project up on GitHub     IEvangelist.Mirror.

Hardware

I was excited when Microsoft started selling the Raspberry Pi 3, Model B - I ordered one immediately.

Raspberry Pi 3

Specs

Specs

Miscellaneous

Below is a semi-comprehensive listing of all the materials and their corresponding cost that I used for building my magic mirror.

Rough Cost Hardware
$60 Raspberry Pi 3 Bundle
$130 BenQ 27” HDMI LED Monitor
$90 Custom-sized Two-way Mirrored Acrylic
$40 Microsoft LifeCam
$25 Dell USB Wired Soundbar
$6 Power Cord Splitter
$25 Full HDMI Cable, USB Extension Cables
$50 Carpentry Materials
$50 Glenlivet 12 Year Old Scotch Whisky (not technically hardware)
~$480

Considering the total investment is still under $500 bucks, that’s not too bad!

OS – Platform

One of my favorite parts about developing the magic mirror was the fact that I could do so from the comfort of Visual Studio using the worlds most powerful programming language today, C#.

Visual Studio     C#

Type Name – Link
OS Windows 10 IoT Core, "Build 10.0.14393"
Platform Universal Windows Platform (UWP), "UAP 1.0"

Software

When people throw around the acronym IoT it can mean a lot of different things. For this specific application, it is essential. Using the built-in WIFI on the Pi 3 we can leverage the power of the internet to gather and share information.

Software is simply the movement and manipulation of data. But without context, said data is meaningless.

The magic mirror application strives to provide data that is all of the following:

  • Relevant
  • Practical
  • Convenient
  • Timely

Below is the user-interface layout. Let’s have a look at the various components that our application is built on.

Layout

Components

From the layout above, it is clear to visualize the key components of the application. Most of these components implement the IContextSynthesizer interface. These implementations are indicators that each component is capable of handling voice commands, and providing a message that is consumable by the UWP speech-synthesizer. More on this later…

Weather – Forecast

The current weather and forecast are retrieved every fifteen minutes from the free Open Weather API. The developer API key and zip code are configurable. Additionally the unit-of-measure is configurable, where you can specify imperial or metric as valid settings.

Clock

The clock is extremely simple. It is literally just the current date and time. It updates every second, formatting to the hour, minute and second – additionally displaying the name of the day followed by the month and day number.

Example:

8:29 34
Wednesday, December 21st

Note: I opted to omit whether or not we’re in ante or post meridiem as it is assumed the user would know if it’s morning or in the afternoon.

Event Calendar / Schedule

My magic mirror is configured to display an aggregation of two calendars. This is entirely configurable, so if you were to fork my repo – you would need to setup your desired endpoints. The only requirement is that the URL is an accessible endpoint that returns valid iCal (*.ics) formatting. The events are truncated to fit on the page and ordered by the date of the event.

Music Player

Imagine you have the magic mirror mounted in your bathroom, or bedroom…it would be nice to say, “play a song”, or “play Deftones” for example and music starts playing. That is the idea behind the music player component. The current implementation of the music player is limited. I spent a few long nights trying to figure out how to use the built-in Bluetooth on the Pi 3, while UWP does have some support it is limited. I was able to pair but not stream songs from my iPod for example, which was really frustrating. For the meantime I simply placed several songs in the Assets directory as content and I can play these resources. Ideally, I will use a web-based service like Spotify or Pandora.

Voice Commands

The Universal Windows Platform provides two very useful classes, the SpeechRecognizer and the SpeechSynthesizer. Leveraging this I have built out the ability to talk to my magic mirror, I can ask it things like “what’s the weather”, “what’s my schedule for Wednesday”, or even tell it commands like “turn this up”.

Microsoft Cognitive Services

Formally known was “Project Oxford”, Microsoft Cognitive Services offers a ton of programming power and you can start using it today for free. Simply subscribe and use your subscription key as the argument to the client .ctor. The magic mirror makes use of the Emotion API, and corresponding EmotionServiceClient from the Microsoft.ProjectOxford.Emotion package.

Consider the following:

async Task<IEnumerable<RawEmotion>> CaptureEmotionAsync()
{
    RawEmotion[] result;

    try
    {
        var photoFile = await _photoService.CreateAsync();
        var imageProperties = ImageEncodingProperties.CreateBmp();
        await _mediaManager.CapturePhotoToStorageFileAsync(imageProperties, photoFile);
        result = await _emotionClient.RecognizeAsync(await photoFile.OpenStreamForReadAsync());
    }
    finally
    {
        await _photoService.CleanupAsync();
    }

    return result.IsNullOrEmpty()
        ? await TaskCache<IEnumerable<RawEmotion>>.Value(() => Enumerable.Empty<RawEmotion>())
        : result;
}
  • First our _photoService asynchronously creates a photo file
  • From the ImageEncodingProperties class, we create a bitmap encoding property set
  • Our _mediaManager captures a photo, storing it in the photo file with the specified encoding
  • Finally we invoke the _emotionClient passing it the stream from the persisted photo

The result object contains a Scores class that looks like the following (from my mugshot):

Set

The service returned a result. The result claims an 81.5% level of confidence that I’m happy based on the given image, what do you think? What you don’t see is that I’m actually taking a selfie with Jeremy Foster – so, yeah – I was pretty happy!

Construction

I would be lying if I tried taking credit for any of the construction. I’m slightly embarrassed to admit that I opted out of building it, as I lack the carpentry skills needed to do a decent job. Instead I asked a friend who just so happens to be awesome at carpentry. After persuading him with a bottle of single malt scotch whiskey, I had my magic mirror constructed and the results were amazing!

Step 1
Step 2
Step 3
Step 4
Step 5
Step 6

I was really excited to deploy my mirror software and give it a go.

Mirror

Check it out
